SPECIFICATIONS

Brand Name: NONE

High-concerned chemical: None

Is Batteries Included: no

Item Type: Battery Testers

Origin: Mainland China

Specifications:

100% Brand new

Material: Plastic & Metal

Color: Gray

Voltage: 12V / 24V

Features:

Automotive relays test tool.

Through the continuous automobile battery (11V-26V) to the relay coil, the detector can properly check the relay contact function.

The tester observes contact data, closure time, relay inertia at each test stage, etc.

Test to properly control the opening and closing of the relay.

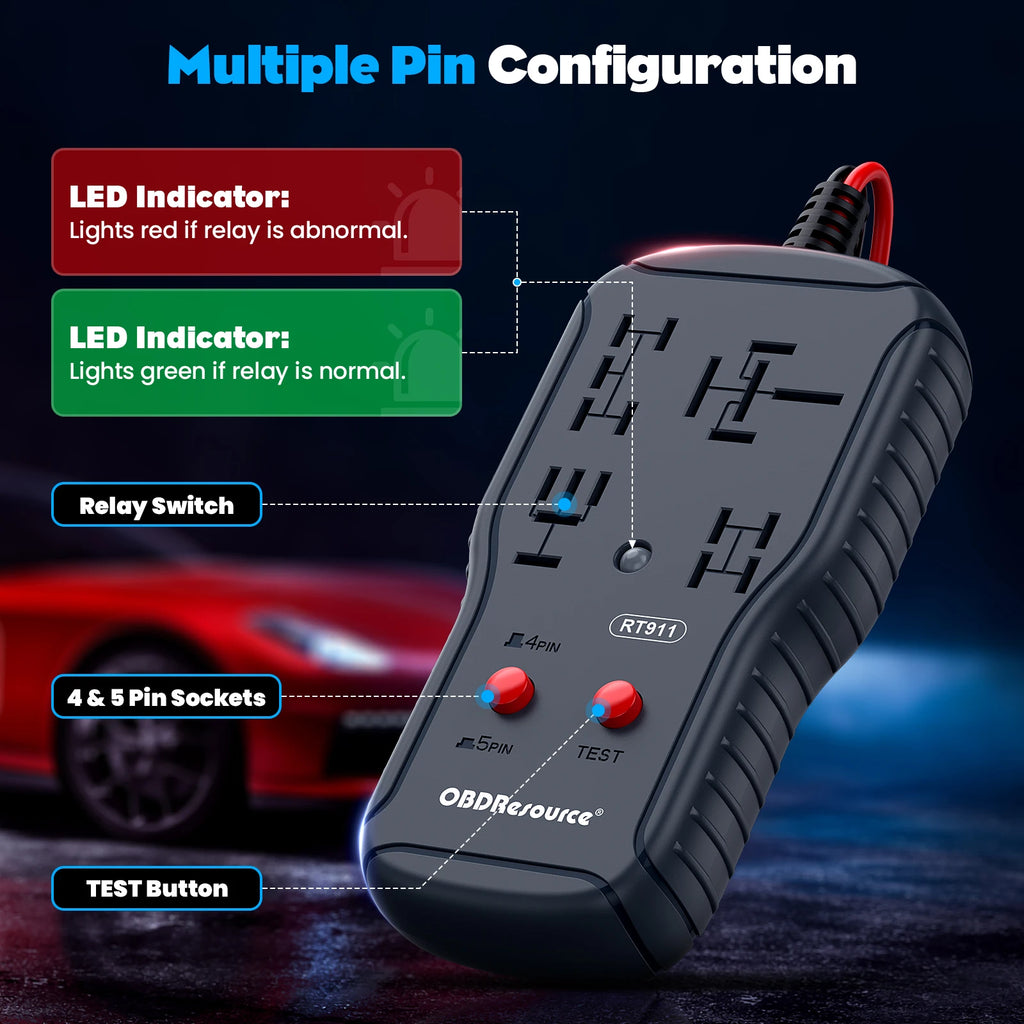

If the relay is abnormal the red LED will light, it's normal the green LED will light.

Warm Notice:

When your car relay is 12V, Car battery must be 12V battery, the voltage must be between 11-15V.

When your car relay is 24V,. Car battery must be 12V battery, the voltage must be between 22-25V.

The coil resistance is preferably above or equal 20 ohms.

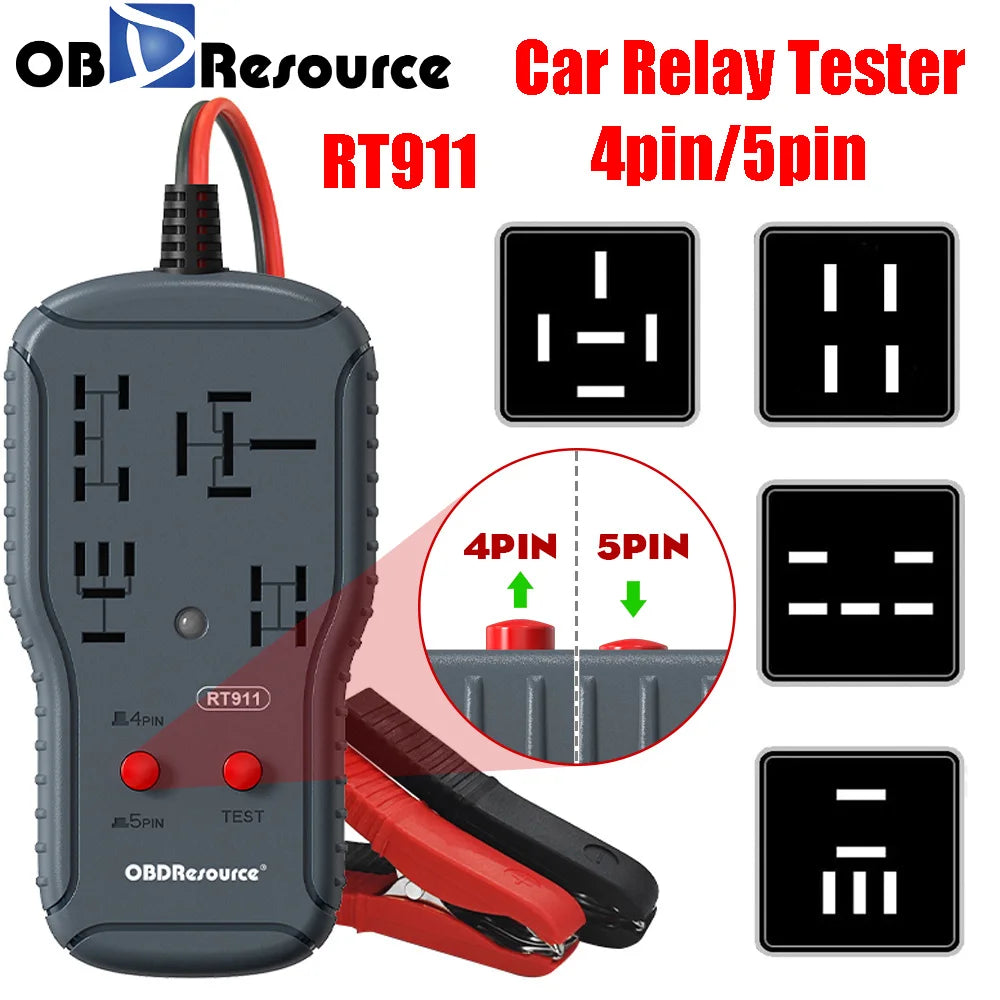

Intelligent automatic detection: With just one push of a button, the device automatically detects the type of 12V/24V relay. OBDResource relay tester supports 4 different pin configurations (4-pin/5-pin), shows the relay status (opening/closing) and the function in real time, allows quick error localisation and does not require manual configuration.

Wireless, portable design: car relay tester is simply powered by the battery terminals and does not require an external power source. This makes it ideal for mobile testing outdoors or in the workshop and overcomes the limits of conventional stationary test equipment.

Wide compatibility: automatic voltage detection covers over 20 common automotive relay types, is compatible with 12V/24V voltage and various pin arrangements (4pin/5pin) and is suitable for both home use and professional repairs - without problems caused by incompatible devices or relays.

Safety and gentle testing: thanks to non-invasive test technology, the internal relay circuit is not damaged. The device accurately detects the status of opening/closing relays and ensures a safe and reliable test process.

Warning instructions for use: OBDResource relay tester relay detection clearly indicates that the battery voltage (12 V or 24 V) must fit for testing to avoid errors due to incorrect voltage. It only supports 4 pin configurations and reminds users of correct handling to ensure accuracy.

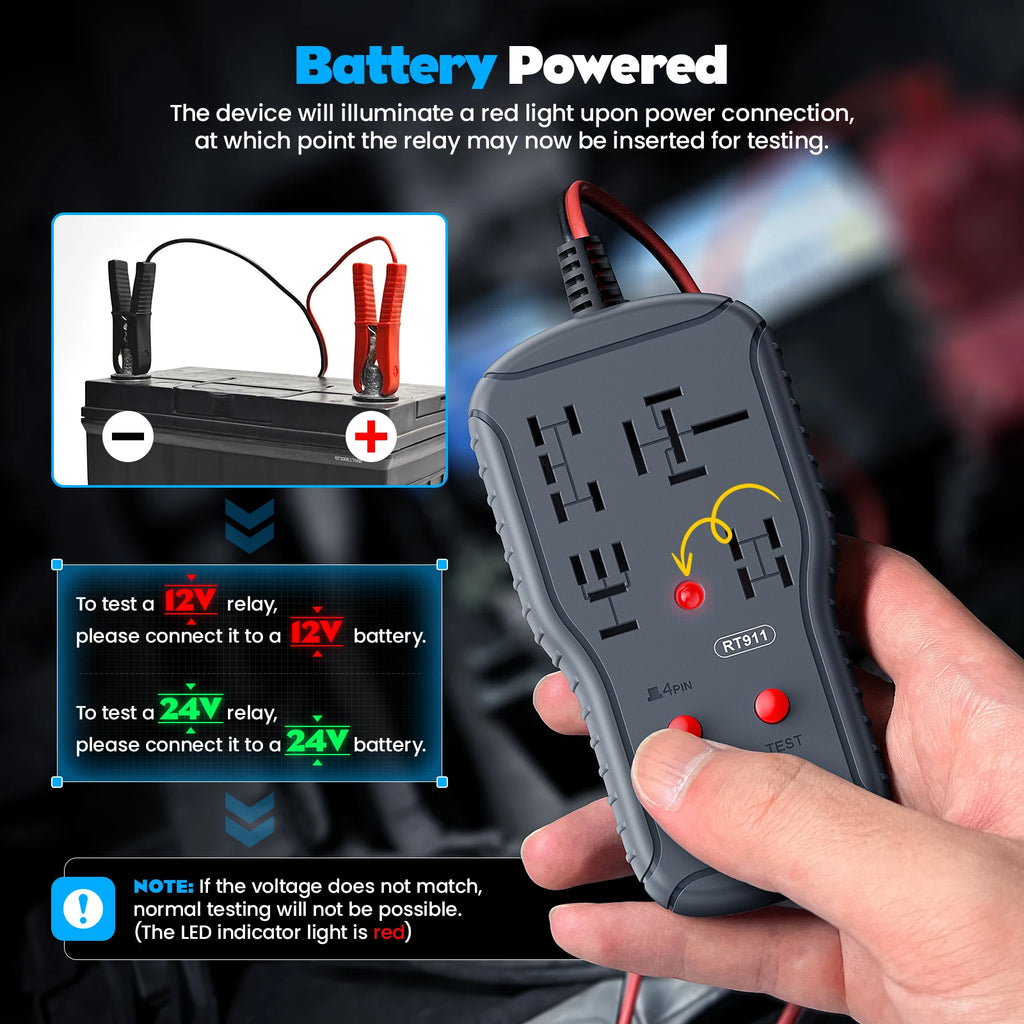

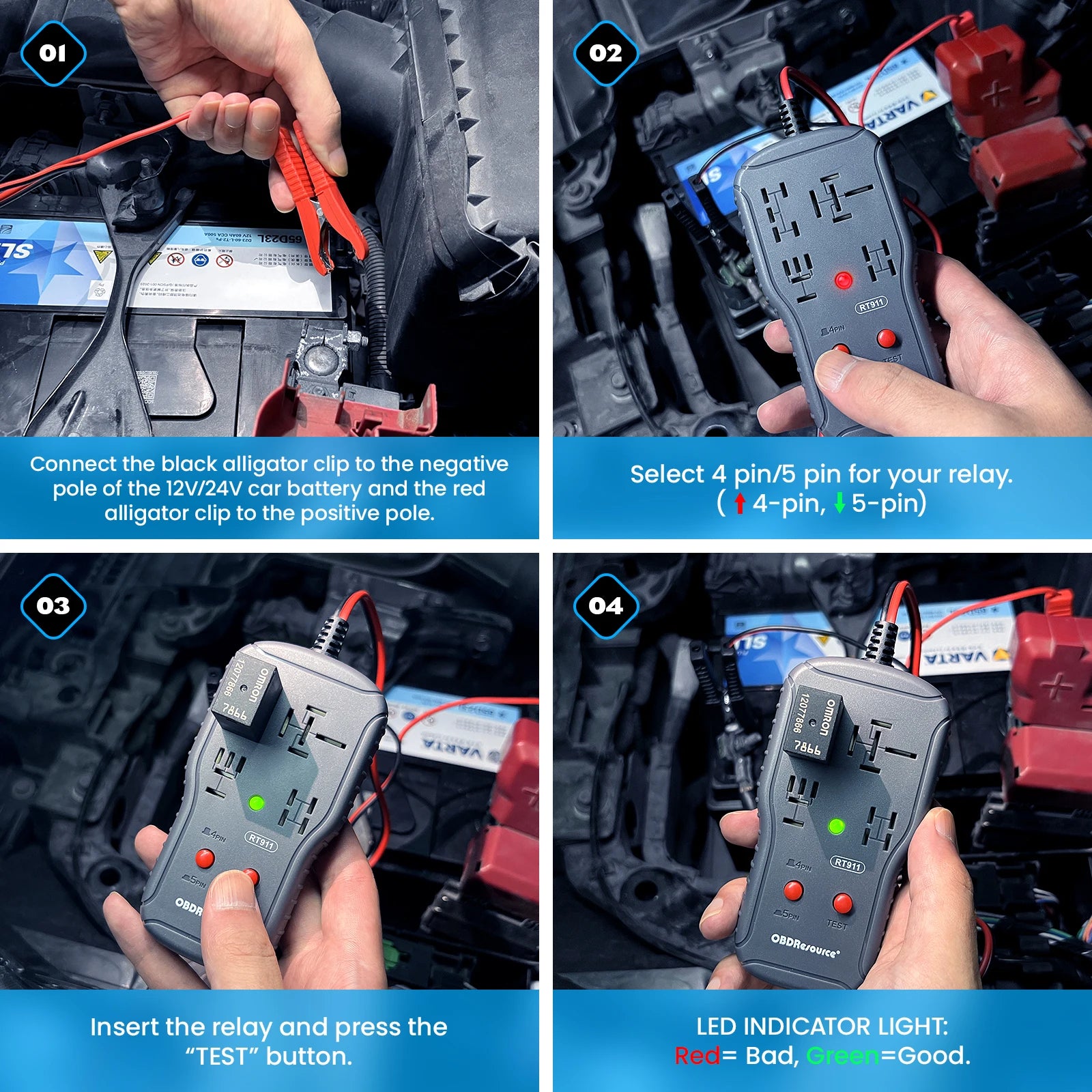

Usage Process The red battery clip must be clamped to the positive pole of the battery and the black battery clip to the negative pole of the battery. At this point, the LED lamp indicates red. Insert the relay into the corresponding connectors, select the appropriate pin and press "Test" to perform the test. (If the voltage of the tested battery is lower than the voltage of the relay, the LED will remain red. In this case, a higher voltage should be used for the test.)

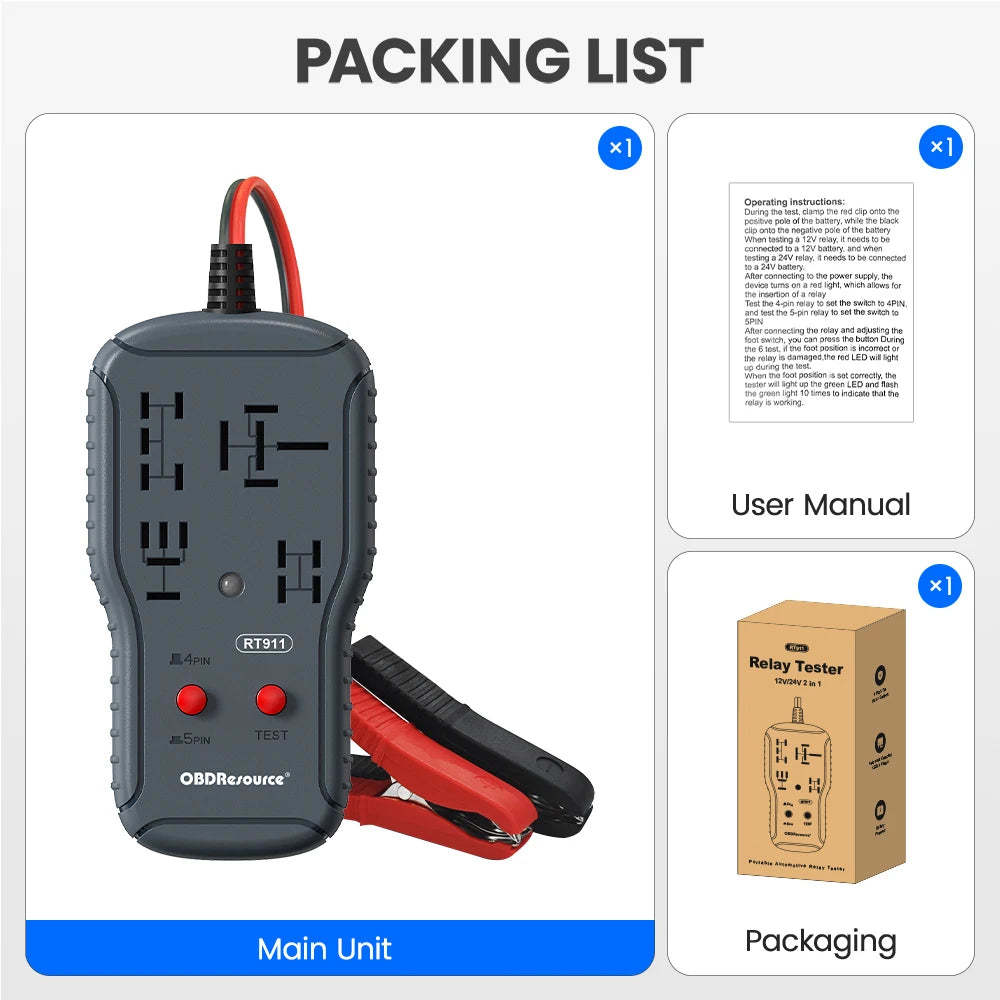

Package included:

1x Relay Tester

1x User manual
